LiFePo4 Battery 12V 100Ah standard SLA battery replacement Storage RV battery
Solar Panel RV LiFePo4 Battery 12V 100Ah Deep cycle and long life design
Replacement for Lead Acid Battery with standard coatible housing
Built in automatic protection for over charge discharge and over current protection
Original grade A LiFePo4 battery cell with same high quality level to ensure perfomance
support 100A charge and discharge current and more than 2000 cycles 2 years guarantee
MSDS UN38.3 DG License to support the air sea and courier door to door service
12V 100Ah 2P4S LiFePo4 rechargeable battery SLA replacement battery specification :
| Solar LiFePo4 Battery manufacture | MaxPower Industrial Co.,Ltd |
| Normal Capacity | 100Ah |
| Normal Voltage | 12.8V |
| Charge cut off voltage | 14.4V |
| Discharge cut off voltage | 10V |
| Charging Method | CC-CV(Constant voltage with limited current ) |
| Dimension | L:330mm W: 173mm T: 216mm |
| Charge current | Standard charge 20A 0.2C |
| Max charge current | 30A |
| Cut off charge current | 2A(0.02C) |
| Standard discharge current | 12A (0.2C) |
| Max discharge current | 30A |
| over charge /discharge current | 95A |
| Internal Resistance | Less than 150mOhms |
| Cycle Life | 2000 Cycles |

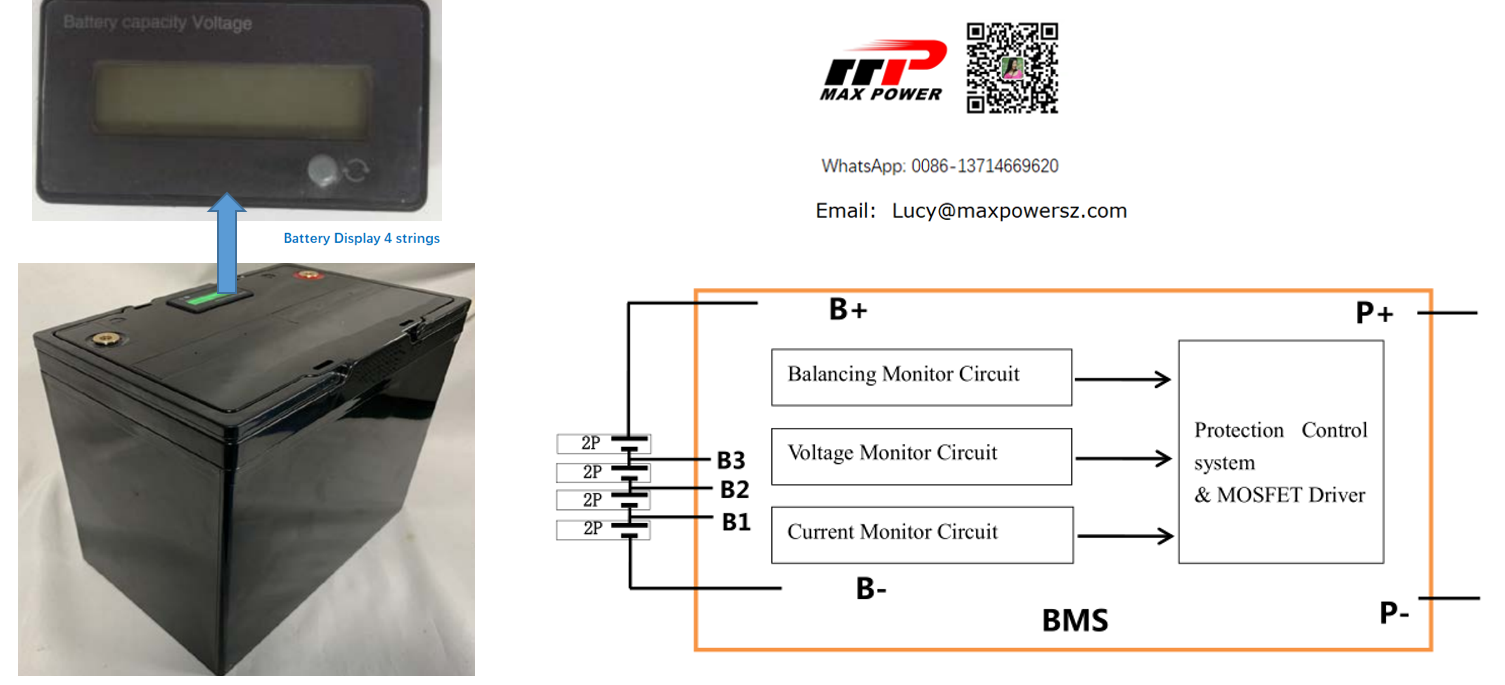

| BMS Function | over charge over discharge over current protection Balance Function |
| Operation Teerature | -20-60 degree |
| Weight | 16kg |
| Quality Guarantee | 2 years |
| Application | Solar system wind system Storage battery RV Backup power Wheelchairs and scooters |
| Sale lead time | 8-10 working days |
| Mass Production lead time | 18-20 working days |
More 12V lifepo4 battery packs ,Contact MaxPower Lucy directly .
Email: Lucy@maxpowersz.com
Whatsapp: 0086-13714669620
Wechat: 0086-13714669620 (Mobile Phone)
Skype: XuXuLucy114

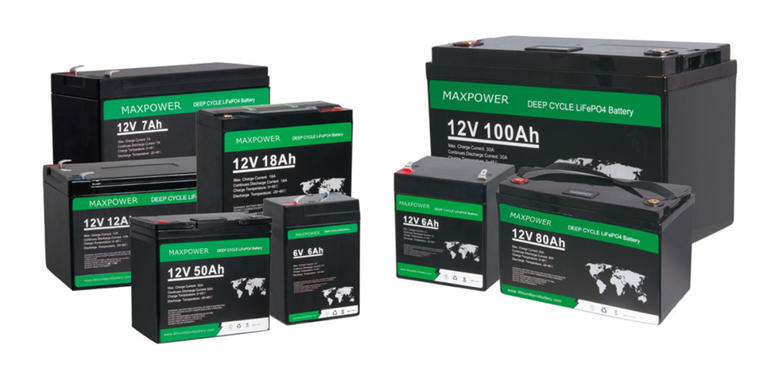

| LiFePO4 Battery ( Lead Acid Battery replacement ) |
| Model | Voltage | Capacity | Cell Configuration | Cell Type | Max. Discharging Current (A) | Max. Charging Current (A) | Size | Weight |
| (V) | (Ah) | (L*W*H) | (kg) |
| (mm) | |
| -6V/6AH | 6 | 6 | 1P2S | IFR32700 6000mAh | 6 | 6 | 70*47*100 | 0.38 |
| -12V/6AH | 12 | 6 | 1P4S | IFR32700 6000mAh | 6 | 6 | 90*70*101 | 0.7 |
| -12V/7AH | 12 | 7 | 2P4S | IFR26650 3600mAh | 7 | 7 | 151*65*94 | 0.88 |
| -12V/12AH | 12 | 12 | 2P4S | IFR32700 6000mAh | 12 | 12 | 181*77*170 | 1.42 |
| -12V18Ah | 12 | 18 | 3P4S | IFR32700 6000mAh | 18 | 18 | 181*77*170 | 2.3 |
| -12V24Ah | 12 | 24 | 4P4S | IFR32700 6000mAh | 24 | 24 | 180x77x168 | 2.756 |
| -12V/36AH | 12 | 36 | 6P4S | IFR32700 6000mAh | 36 | 36 | 256x165x210 | 4.084 |
| -12V/50AH | 12 | 50 | 1P4S | EA01 50Ah | 50 | 50 | 229*138*208 | 5.96 |
| -12V/60AH | 12 | 60 | 1P4S | EA06 59Ah | 59 | 30 | 256x165x210 | 5.58 |
| -12V/80AH | 12 | 80 | 5P4S | GX 17Ah | 30 | 30 | 330*173*216 | 7.72 |
| -12V/100AH | 12 | 100 | 2P4S | EA01 50Ah | 100 | 100 | 256x165x210 | 10.5 |
| -12V/120AH | 12 | 120 | 2P4S | EA06 59Ah | 120 | 60 | 256x165x210 | 10.86 |
| -12V/150AH | 12 | 150 | 3P4S | EA01 50Ah | 150 | 75 | 330*173*216 | 15.66 |
| -12V/180AH | 12 | 180 | 3P4S | EA06 59Ah | 180 | 90 | 330*173*216 | 16.54 |
| -12V/200AH | 12 | 200 | 4P4S | EA01 50Ah | 200 | 100 | 490*171*240 | 20.88 |
| -12V/300AH | 12 | 300 | 6P4S | EA01 50Ah | 200 | 150 | 520*267*220 | 31.32 |
| -24V/100AH | 24 | 100 | 2P8S | EA01 50Ah | 100 | 50 | 490*171*240 | 19.48 |
| -24V/150AH | 24 | 150 | 3P8S | EA01 50Ah | 150 | 75 | 520*267*220 | 29.22 |
