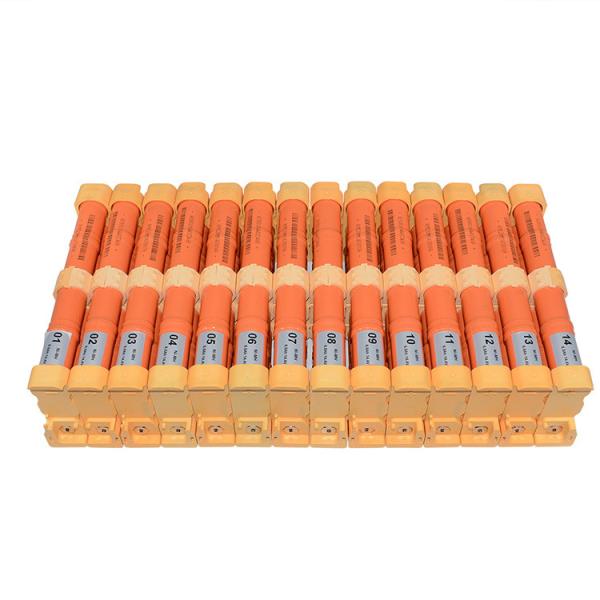

Toyota Camry 6500mAh 244.8V Ni-Mh Replacement Hybrid Car Battery pack :
| NO | Item | Specification |
| 1 | Battery Pack Dimension(mm) Length×Width×Height | 668×291×109 |
| 2 | Approximate Weight (kg) | 36 |
| 3 | Nominal Capacity (mAh) | 6000 |
| 4 | Nominal Voltage (V) | 244.8 |
| 5 | Peak Discharge(30C discharge for 10S) | voltage≥163.2V |
| 6 | Peak Charge (15C charge for 10S) | voltage≤340V |
| 7 | Continuous Discharge(15C discharge for 60S) | voltage≥183.6V |
| 8 | Specific Power | ≥1000W/kg |
| 9 | Specific Energy | ≥40Wh/kg |
| 10 | High Teerature Performance( 55℃ 1C discharge rate) | ≥90% |
| 11 | Low Teerature Performance(-20℃ 1C discharge rate) | ≥85% |
| 12 | Charge Retention Performance(28days charge retention rate) | ≥80% |
- 100% original and fresh Hybrid car battery with grade A quality level
- Japanese technology with full automative production line to ensure high end quality
-
The module we use in the pack is 0304:
Advantage to choose us:
- High quality insurance, Auto production system to make sure the high consistance of all cell.
- Japan and US coopert cell, BMS system to keep the advance technique.
- More than 3000 deep cycles life. 500cyles capacity>90%.
- Hybrid car life can support 8-10 years
- Very good cost performance 1/3 around coared with the original car battery pack.
- Easy to intall into your car and coatiable with software
- Multimode to match different HEV cars like Prius, Camry, Ford, Gen Insight/Accord/Civic,Lexus, Alfard...
- Support sale order of 1set
0304 Module Hybrid vehicle battery coatible Hybrid car model :
| FOR CAR Prius C(2011-present) AQUA (2012-2016) |
| Modules No. | Voltage | Capacity |
| 10pcs | 144V | 6.5Ah |
| FOR CAR Gen2 (2003-2009) , |
| Gen3 (2009-2015) , |
| Lexus CT200h (2011-present) |
| Modules No. | Voltage | Capacity |
| 14pcs | 202V | 6.5Ah |
| FOR CAR Camry XV40 (2007-2011) |
| Camry XV50 (2011-2016) |
| Alfard/Lexus ES300H (2012-2018) |
| Lexus NX300H |
| Modules No. | Voltage | Capacity |
| 17pcs | 245V | 6.5Ah |
| FOR CAR Lexus GS450h (2007-2011) |
| Modules No. | Voltage | Capacity |
| 20pcs | 288V | 6.5Ah |
Packing info:
- OQC report and Lab. testing date be offered for everyshipment
Three tips on Hybrid car battery maintenance:
1. Charge and discharge the hybrid car battery per each 3 months
Do not keep in battery pack stored no working for long time .
2. Follow our hybrid car battery manual to charge the hev nimh battery
Do not mix the new battery sticks with old battery sticks
3. When the hybrid battery pack is stored for more than 3 months or the
car battery module voltage becomes 15V ,the battery pack should be charged
and discharged for maintenance once .
Contact us for sale testing and free Hybrid Car battery solution consult .
