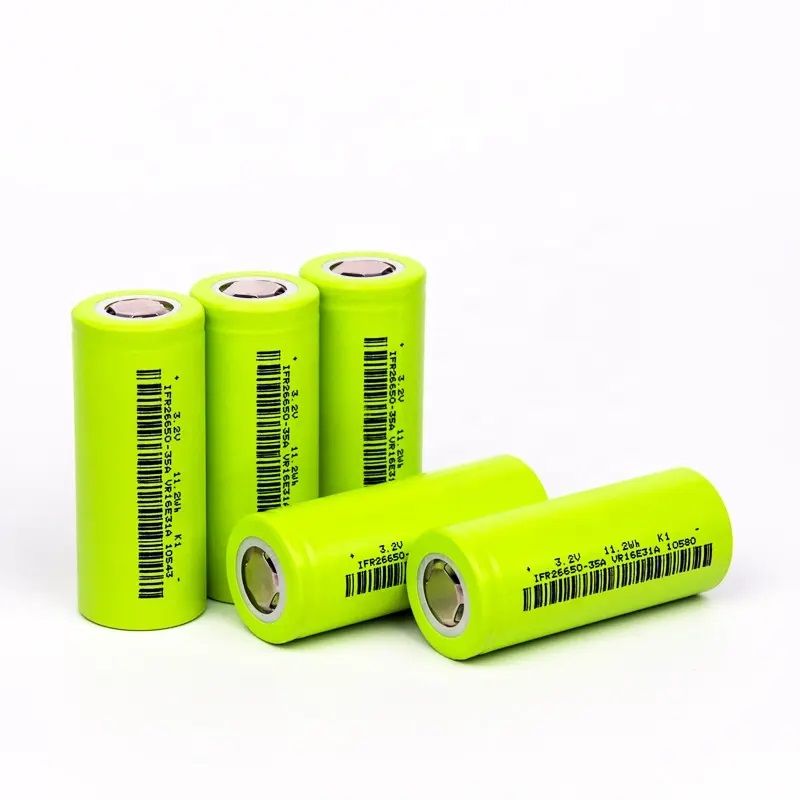

3.2 volt lithium ion rechargeable battery 26650 lifepo4 3000mah
3.2v rechargeable battery pack lifepo4 ifr26650 3000mah 3.2v
1. 3.2V 3000mAh 26650 High Density, Long Lifecycle Cylinder LiFePO4 Battery.
2. Real Capacity: 3000mAh
3. Professional Factory: OEM/ODM are warmly welcome.
4. UL / CE / ROSH / MSDS / UN38.3 are be approved.
5. High Energy Density, Long Lifecycle.
| NO. | Iterm | Specification |
| 1 | Capacity | 3000mAh |
| 2 | Voltage | 3.2V |
| 3 | Max. Charge Voltage | 3.65V |
| 4 | Discharge Cut-off Voltage | 2.0V |
| 5 | Standard Charge Current | 2A |
| 6 | Max. Charge Current | 9A |
| 7 | Standard Discharge Current | 9A |
| 8 | Max. Continuous Discharge Current | 30A |
| 9 | Pulse Discharge Discharge at 10's | 45A |
| 10 | Internal Resistance | ≤20mΩ |
| 11 | Cycle Life | 3000 Times |
| 12 | Dimension | 26±0.5*65.6±0.5mm |
| 13 | Weight | 85g |
| 14 | Operation Temperature | -20°C-60°C |

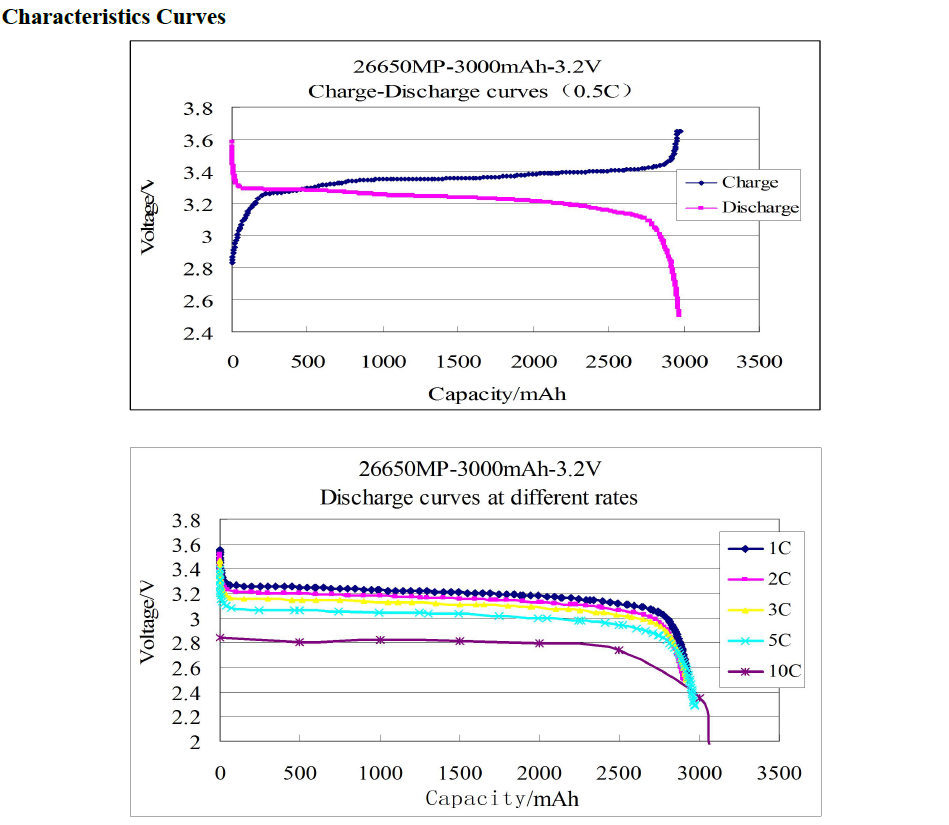

Lifepo4 Battery cell 26650 3Ah 3.2V 45A battery charge and discharge Curve info:
1.Experienced LiFePO4 / Lithium ion Battery & Pack supplier.
2. Professional technical, prodction & servise team for your service.
3. 15 years battery supplier, factory recognized by ISO.
4. 7 days / 24 hours service for you, all questions will be dealed within 24hours.
5. Satable Quality--Come from superior material supplier & perfect quality control system.
6.Lower Cost--Not the cheapest but the lowest at the same quality.
7.Good Service--Satified service before and after sale.
8. Delivery Time-- 5-10 Days.
9. Warranty Period--2 Years.
The related lithium lifepo4 battery cell models :
| Item | Voltage(V) | Capactiy(mAh) | Dimension(mm) | Weight(g) |
| Diameter(mm) | Height(mm) |
| IFR10440 | 3.2 | 200 | 10.3 | 44.2 | 7.0 |
| IFR10440 | 3.2 | 210 | 10.3 | 44.2 | 7.5 |
| IFR10440 | 3.2 | 220 | 10.3 | 44.2 | 8.0 |
| IFR14240 | 3.2 | 210 | 14.2 | 24.3 | 8 |
| IFR14240 | 3.2 | 200 | 14.2 | 24.3 | 9 |
| IFR14430 | 3.2 | 250 | 14.2 | 43.3 | 11 |
| IFR14430 | 3.2 | 300 | 14.2 | 43.3 | 12 |
| IFR14430 | 3.2 | 400 | 14.2 | 43.3 | 13 |
| IFR14500 | 3.2 | 250 | 14.2 | 50.2 | 14 |
| IFR14500 | 3.2 | 400 | 14.2 | 50.2 | 15.5 |
| IFR14500 | 3.2 | 500 | 14.2 | 50.2 | 16 |
| IFR14500 | 3.2 | 600 | 14.2 | 50.2 | 18 |
| IFR14650 | 3.2 | 700 | 14.2 | 65.3 | 19.5 |
| IFR14650 | 3.2 | 800 | 14.2 | 65.3 | 21 |
| IFR15266 | 3.2 | 200 | 15.2 | 26.5 | 10.5 |
| IFR15266 | 3.2 | 210 | 15.2 | 26.5 | 11.5 |
| IFR16340 | 3.2 | 300 | 16.2 | 34.2 | 13.5 |
| IFR16340 | 3.2 | 400 | 16.2 | 34.2 | 15 |
| IFR18500 | 3.2 | 600 | 18.5 | 50.2 | 26 |
| IFR18500 | 3.2 | 750 | 18.5 | 50.2 | 28 |
| IFR18500 | 3.2 | 900 | 18.5 | 50.2 | 30 |
| IFR18500 | 3.2 | 1000 | 18.5 | 50.2 | 32 |
| IFR18650 | 3.2 | 1200 | 18.5 | 65.3 | 40 |
| IFR18650 | 3.2 | 1300 | 18.5 | 65.3 | 42 |
| IFR18650 | 3.2 | 1400 | 18.5 | 65.3 | 42 |
| IFR22430 | 3.2 | 1100 | 22.5 | 43.3 | 45 |
| IFR22430 | 3.2 | 1200 | 22.5 | 43.3 | 47 |
| IFR22650 | 3.2 | 1800 | 22.5 | 65.3 | 60 |
| IFR22650 | 3.2 | 1900 | 22.5 | 65.3 | 62 |
| IFR22650 | 3.2 | 2000 | 22.5 | 65.3 | 63 |
| IFR26430 | 3.2 | 1900 | 26.5 | 43.3 | 54 |
| IFR26430 | 3.2 | 2000 | 26.5 | 43.3 | 56 |
| IFR26500 | 3.2 | 2100 | 26.5 | 50.3 | 56 |
| IFR26500 | 3.2 | 2200 | 26.5 | 50.3 | 58 |
| IFR26650 | 3.2 | 2900 | 26.5 | 65.3 | 83 |
| IFR26650 | 3.2 | 3000 | 26.5 | 65.3 | 85 |
| IFR26650 | 3.2 | 3100 | 26.5 | 65.3 | 86 |
| IFR26650 | 3.2 | 3200 | 26.5 | 65.3 | 88 |
| IFR26650 | 3.2 | 3300 | 26.5 | 65.3 | 90 |
| IFR32600 | 3.2 | 3500 | 32.5 | 60.5 | 125 |
| IFR32600 | 3.2 | 3600 | 32.5 | 60.5 | 129 |
| IFR32650 | 3.2 | 4500 | 32.5 | 65.5 | 130.0 |
| IFR32900 | 3.2 | 4500 | 32.5 | 90.5 | 170 |
| IFR32900 | 3.2 | 5000 | 32.5 | 90.5 | 180 |
| IFR32900 | 3.2 | 5500 | 32.5 | 90.5 | 192 |
| IFR38120 | 3.2 | 10000 | 38.5 | 120.5 | 320 |
| IFR42110 | 3.2 | 10000 | 42.5 | 110.5 | 350 |
| IFR42110 | 3.2 | 11000 | 42.5 | 110.5 | 360 |
| IFR42120 | 3.2 | 12000 | 42.5 | 120.5 | 380 |
| IFR42120 | 3.2 | 13000 | 42.5 | 120.5 | 390 |
More rechargeable lifepo4 battery cell models with price list ,contact Lucy directly .
Lucy whatsApp: 0086-13714669620
Email: Lucy@maxpowersz.com
BatteryLucyXu@gmail.com
Mobile : 0086-13714669620
Skype: XuXuLucy114
Product Tags:
|
|
3.2V 3000Ah 26650 LiFePO4 Battery 10C Rate Rechargeable LiFePO4 Batteries Images
|
